Product Overview
The GVision 4K PTZ Camera delivers crystal-clear 4K Ultra HD video for professional conferencing, church live streaming, and broadcast applications. Powered by a Sony 1/2.8″ 8.29MP CMOS sensor, it captures stunning 3840×2160 resolution at 30fps with true-to-life color accuracy.
Key Features
- 4K UHD 3840×2160 @ 30fps — Sony 1/2.8″ 8.29MP CMOS sensor
- 12x Optical Zoom — f=3.9~49.2mm, F1.6 aperture, 80.8° wide-angle FOV
- Triple Output — HDMI, USB 3.0 (UVC), and RJ45 network simultaneously
- NDI / RTSP / RTMP / ONVIF support — compatible with all major streaming platforms
- Silent PTZ — 350° pan (±175°), 180° tilt (±90°), ultra-smooth stepper motor
- 255 Preset Positions — programmable via remote, RS-485, or IP control
- Advanced Image Processing — Wide Dynamic Range, 2D/3D Noise Reduction, Defog
- Flexible Power — DC12V, PD/QC fast charging, optional POE (IEEE 802.3at)
- Control Protocols — VISCA, PELCO-D, PELCO-P, VISCA over IP
- Ideal for — Churches, Conference Rooms, Distance Learning, Telemedicine, Live Streaming
Specifications
| Spec | Detail |
|---|---|
| Sensor | Sony 1/2.8″ CMOS, 8.29MP |
| Resolution | 4K UHD 3840×2160 @ 30fps |
| Optical Zoom | 12x (3.9~49.2mm) |
| Field of View | 80.8° (wide) ~ 6.48° (tele) |
| Pan Range | 350° (±175°) |
| Tilt Range | 180° (±90°) |

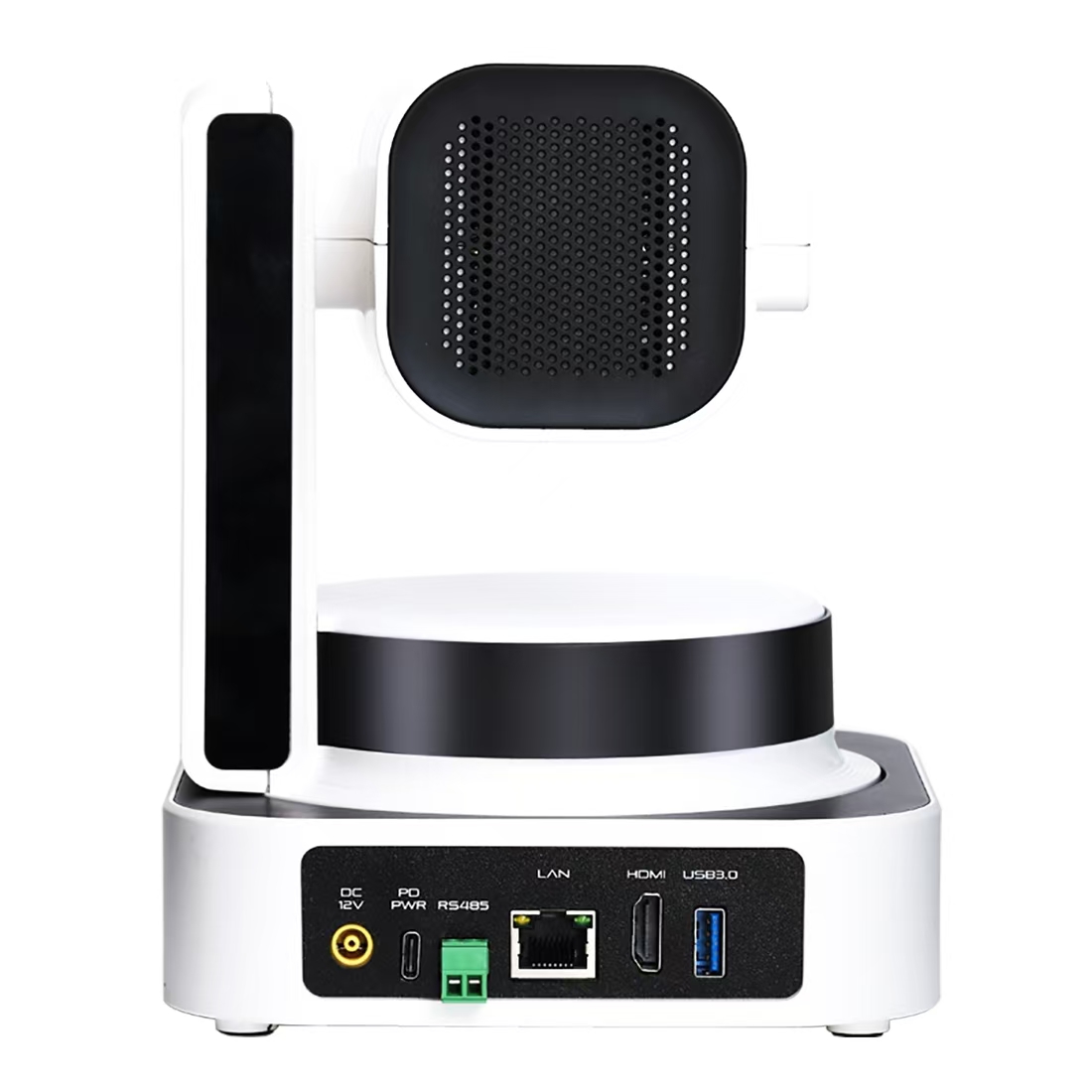

| Outputs | HDMI, USB 3.0, RJ45 |
| Protocols | RTSP, RTMP, ONVIF, NDI (optional) |
| Control | RS-485, VISCA, PELCO-D/P, IR Remote |
| Power | DC12V/2A, PD/QC, POE optional |
| Dimensions | 150×150×210mm |
| Weight | 1.25kg |
